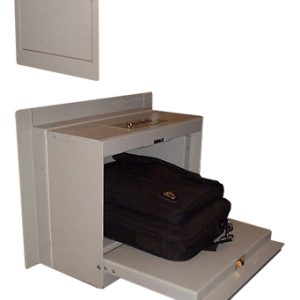

CSL0584 Electronic Transfer Units

CSL0584A – Standard Flat bed
Overall – 474 x 380 x 650mm (WxHxD)
Capacity – 410 x 240 x 570mm (WxHxD)

CSL0584B – Roller flat bed
Overall – 820 x 690 x 850mm (WxHxD)
Capacity – 500 x 400 x 850mm (WxHxD)

Purpose

For safe and easy transfer of larger items from a non-secure area directly through a wall or counter up to 495mm thick. Operation is by push button, which releases solenoid latches to open either the inner or outer door and incorporates an electric interlock ensuring only one door can be open at any one time.
Specification

Built in electronic interlocking doors.
Bullet resistant to BS 5051:G2.
For wall thickness upto 495mm.
Available in two sizes.
Finish

Metallic silver, polyester powder coated.
Available Options

Remote push button panel with cables and DIN plugs.
Roller bed on CSL0584A.
Support frame.
Non- standard sizes.
