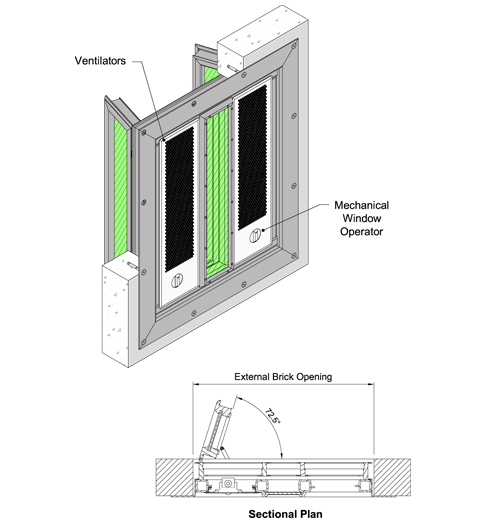

CSL0610 International Safer Cell Window

Specification

• Based on NOMS 2005 safer cell window development.
• Independently tested by Bureau Veritas to NOMS STD/X/SPEC/024.
• 24 hour cut resistance bars.
• Window assembly meets building regulations part L.
• The grille is constructed from 50mm x 50mm x 6.4mm square hollow section grade 50 D high tensile steel, enhanced with tungsten carbide rods on all corners with all joints hard faced welded.
• Polycarbonate 8mm screen mounted to the internal face.
• External window frame is thermally broken and is constructed from aluminium which can be opened to allow the free flow of air.
• 2mm thick 316 stainless steel ventilation plates with 3mm holes are fitted to the inside allowing for 36% air flow.
• Anti-ligature window control mechanisms (mk8) is housed within the ventilation panel allowing easy operation of the opening sashes.

Finish

• The external aluminium window is supplied pre-painted to a gloss white finish.
• Enhanced bar grilled prime painted for finishing painting on site.
• Brushed DP1 finish stainless steel ventilation plates.

Available Options

• Single ventilation plate.
• Double width ventilation on one side.
• Can be cast in instead of bolt fix.
• Barred grille can be supplied pre-finished white.
• Barred grille can be supplied non-enhanced i.e not 24 hour cut resistant.
