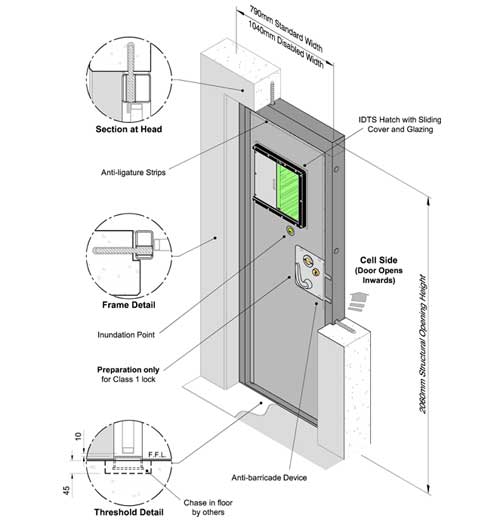

CSL0113 Cell Door – Prison Integrated Drugs Treatment System

Specification

• Door panel constructed from 38mm wide rolled hollow steel sections with 2mm thick steel door skins seam welded along all edges.
• Mineral wool insulation to all internal voids.
• Steel hollow section door frame with anti-barricade device.
• Frame fixed by chemical resin anchors.
• Door panel mounted within door frame and hung on a full height tubular steel pivot hinge.
• Inundation unit.
• IDTS Hatch with sliding cover and glazing c/w locking facility.
• Preparation for MoJ Class 1 lock supplied and fitted by HMPS or Private Operator.
• Anti-ligature strip to front face of door, along top and down leading edge terminating at lock.

Finish

• One coat factory applied high build zinc phosphate primer to all mild steel surfaces.

Available Options

• Cast in type.
• Heavy duty barrel bolt.
