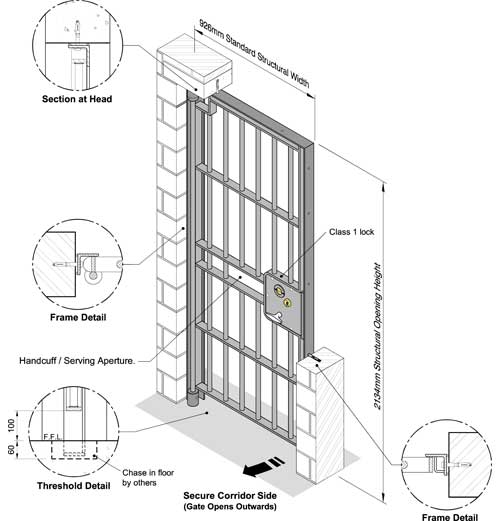

CSL0122 International Cell Gate

Specification

  • Gate is constructed from 50mm x 12mm flat steel framework with 25mm diameter solid vertical bars.
  • Mounted on a 70mm x 70mm x 8 rolled steel angle frame with a full height stainless steel hinge pin.
  • Top and bottom pivot hinges bushed, base hinge incorporates a ball bearing to reduce hinge friction and giving ease of movement.
  • Frame fixings to suit a variety of opening construction.
  • Class 1 heavy duty slam action lock.

Finish

  • One coat factory applied high build zinc phosphate primer to all mild steel surfaces.

Available Options

  • Galvanized.
  • Polyester Powder Coated.
  • Any arrangement of side or header panels can be provided.
View PDF Specification

Description

Price on application
